[STRANDS] BLADE SPLIT LED BAR 20.5"

[STRANDS] BLADE SPLIT LED BAR 20.5"

Low stock! Only 2 left
€180,00
€180,00
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

✓ Fits most common license plate holders in the EU
✓ Approved for use across EU with its split design
✓ ECE R149 with reference number 20 x 2

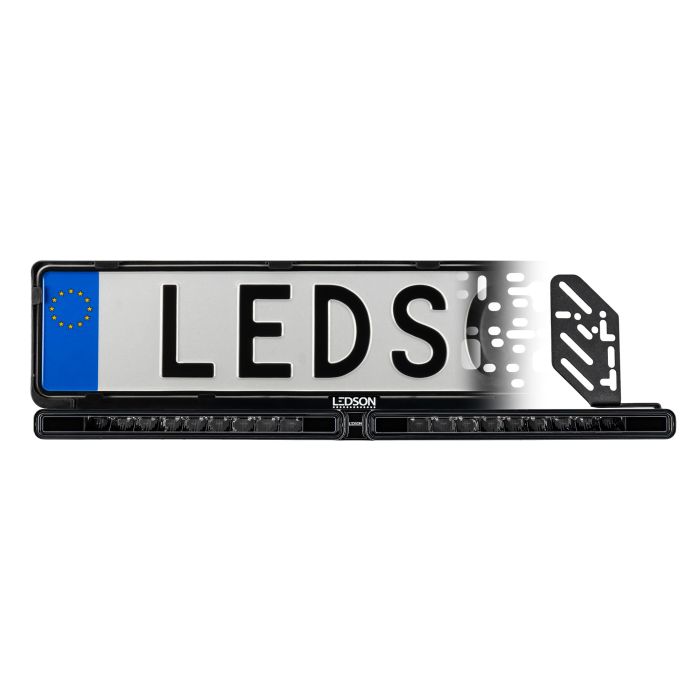

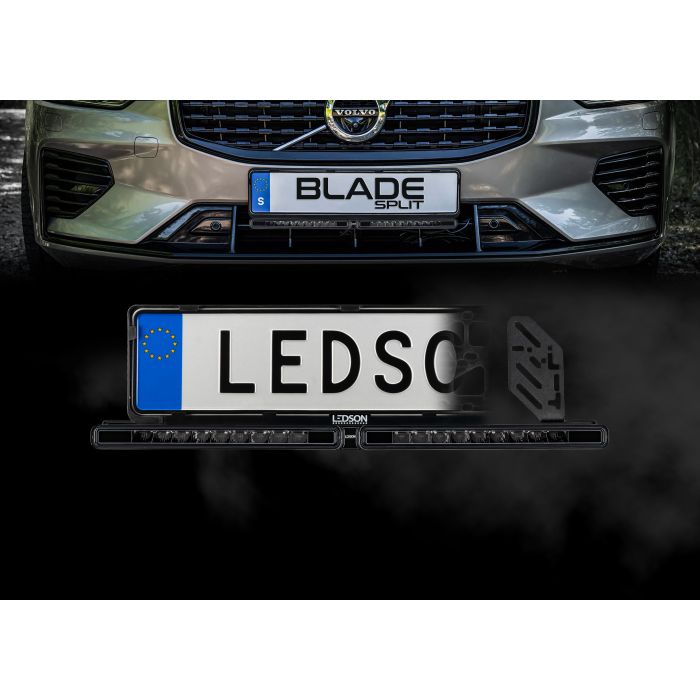

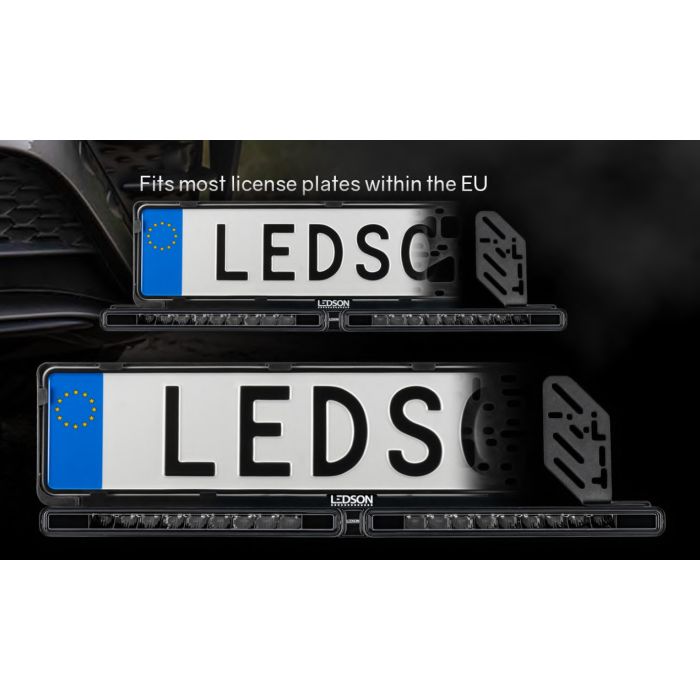

Approved within the EU and fits most EU license plate holders

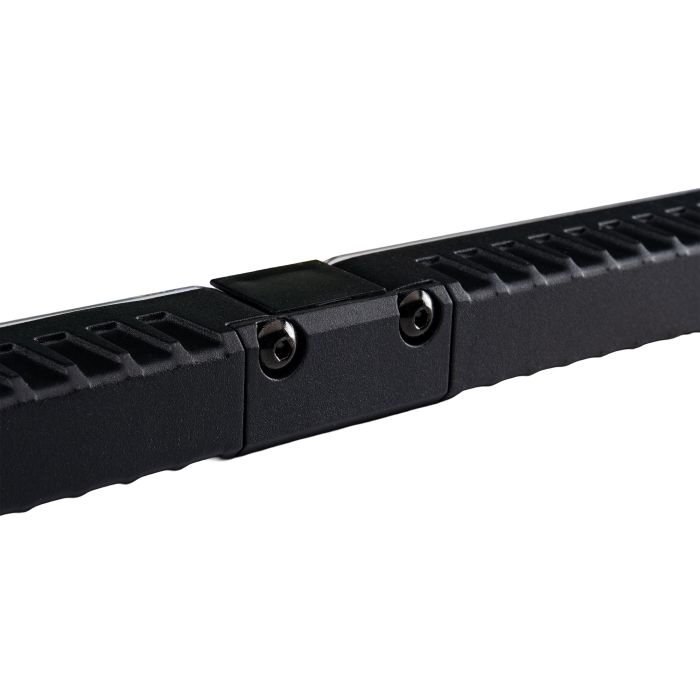

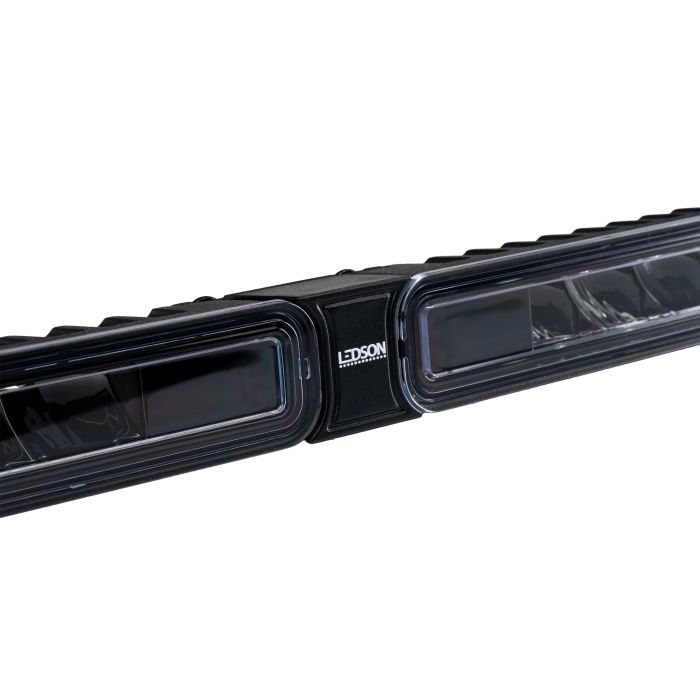

Blade Split is designed to work with most license plate holders within the EU (except Åland) and fits all holders with a width between 442 mm and 520 mm. Thanks to its split design, it is ECE R149-approved with a reference number of 20 x 2, making it legal for road use throughout the EU.

With a height of only 25 mm, it blends seamlessly into the vehicle’s design while delivering a powerful, wide beam pattern with an impressive 1 lux reach at 435 meters.

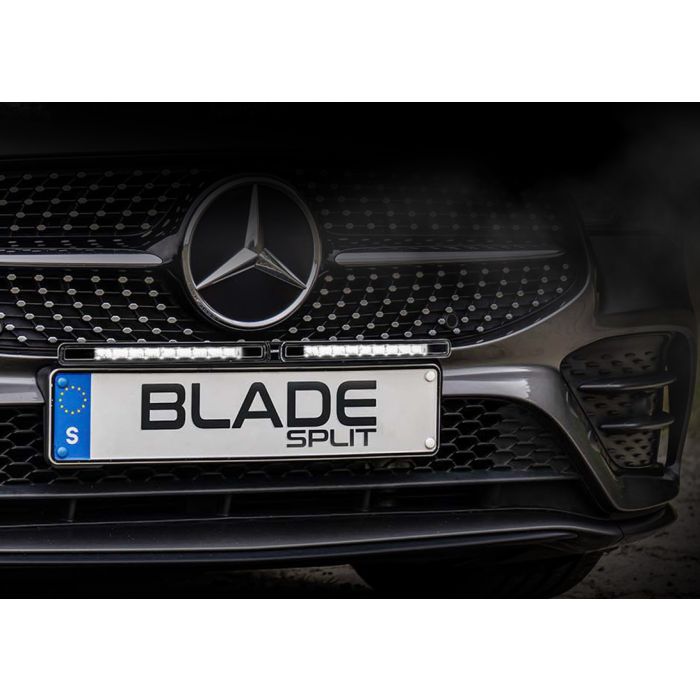

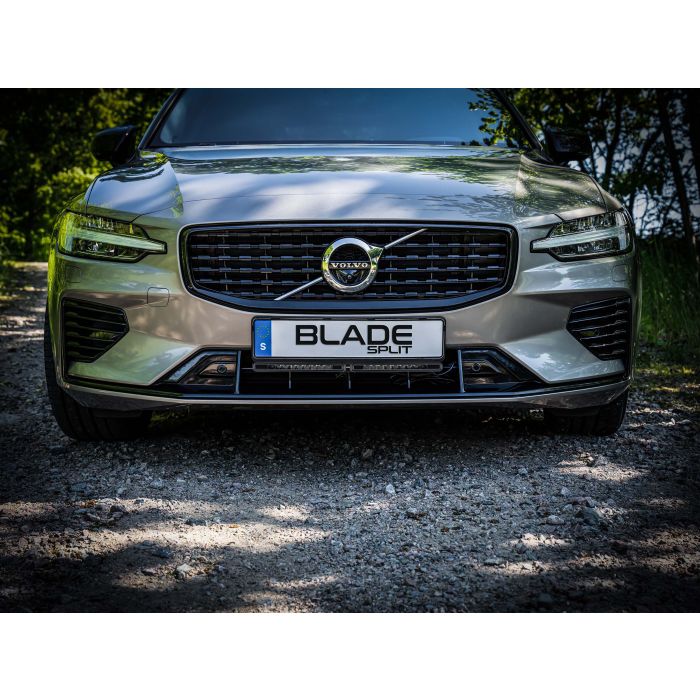

Sleek by day – Safe by night

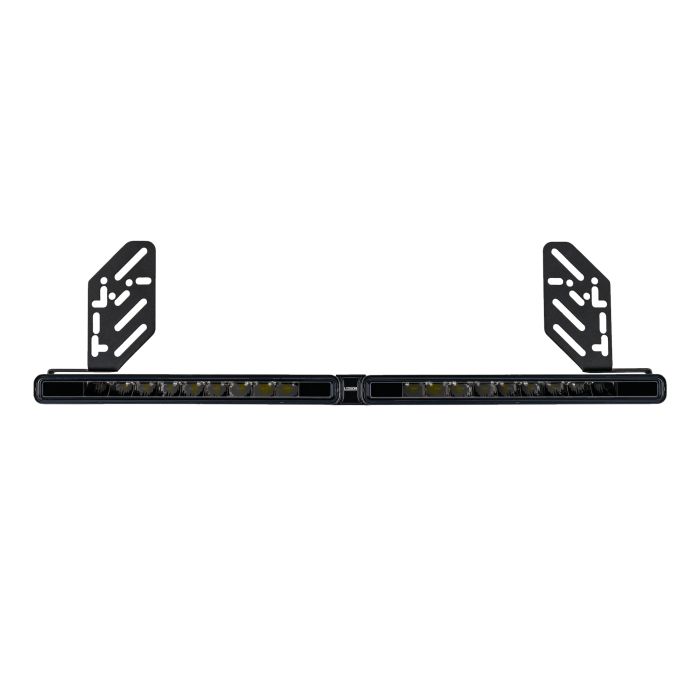

Thanks to the specially designed brackets, it is easily mounted behind the license plate – without sticking out. When turned off, it blends seamlessly with the vehicle's lines, making it perfect for those who want a powerful yet discreet lighting solution.

Hassle-free installation – everything included
For easy and smooth installation, a complete wiring kit is included, suitable for both LED, Xenon and halogen vehicles. The thin cable and connector can be discreetly routed through a small hole into the engine bay. With a 170 cm long cable, you have plenty of flexibility during installation. You can very easily adjust the beam pattern using two screws on the outer edges of the bar without removing it. It doesn’t get easier than this!

Blade Split can be attached both above and below the license plate and with recessed or forward mounting.

Halogen or XBB to LED/Xenon high beam
For vehicles with halogen high beams, simply connect the yellow cable to the high beam signal. For vehicles with Xenon or LED, the XBB system (item number artnr 7800221, sold separately) is used for easy connection. Blade works with both 12V (cars) and 24V (trucks) systems, though only 12V when using XBB.

Features and technical data:

  • Split design – fits EU plates with width between 442–520 mm
  • E-marked R149 (ref. no 20 x 2), R10 (EMC rated)

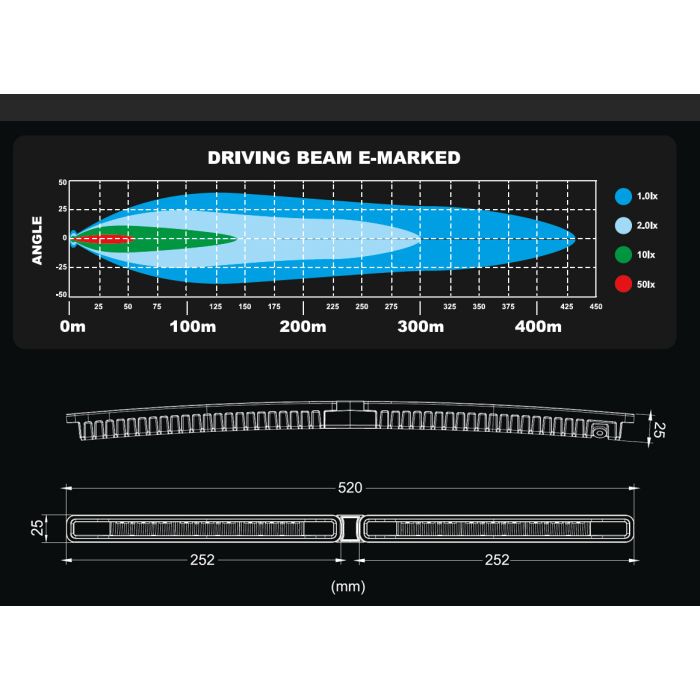

  • Driving Beam light pattern (wide and oblong)
  • Curved design to neatly match the front of the car
  • Range: 435 m (1 lux)
  • Lumen: 9 800 lumen (theoretical), 7 200 lumen (actual)
  • Color temperature 5000K (Neutral White)
  • 126 W (18 x 7 W LED)
  • Voltage: 9-36V
  • IP69K (water/dustproof)
  • Aluminum housing and polycarbonate lens
  • Side reflective optics
  • Pressure equalization membrane
  • Electronic heat management

Supplied:

  • Ledson Blade Split LED Bar
  • Control unit with wiring harness
  • Mounting details
  • Locking strip for number plate holder
  • Hex socket screws with washers
  • Self-drilling screws
  • Instructions

Dimensions & weight:

  • Width: Total 520 mm (252 mm per LED bar)
  • Height: 25 mm
  • Depth: 25 mm
