[STRANDS] BLADE LED BAR 20.5"

[STRANDS] BLADE LED BAR 20.5"

Out of stock
€180,00
€180,00
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Sold out

✓ Enhances and blends in with the vehicle's appearance
✓ Wide light beam with a 435 m range at 1 lux
✓ Prepared for XBB integration

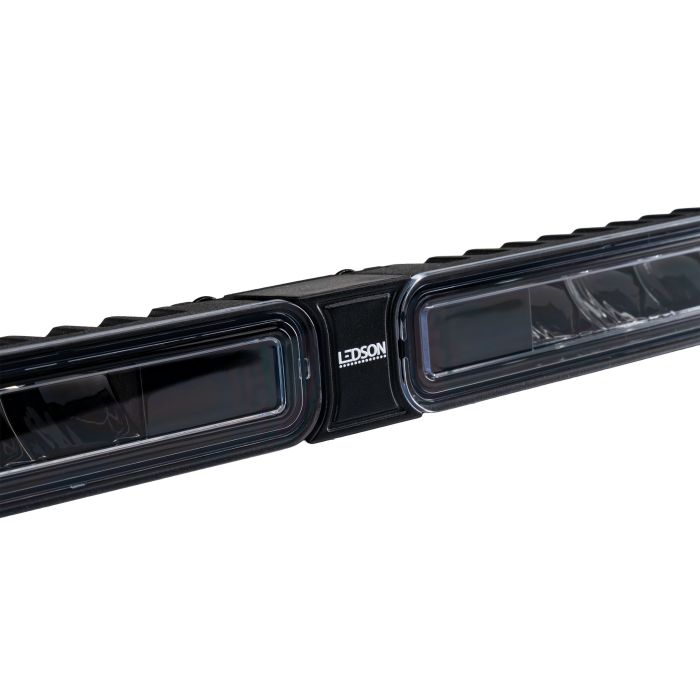

Blade is the LED bar that truly blends into your vehicle. With a height of only 25 mm, it’s nearly invisible in daylight – but when you activate the high beams, you get a powerful and wide beam pattern with a range of 435 meters at 1 lux. Perfect for everything from daily commuting to weekend adventures. Ledson Blade is E-marked ECE R149 and approved for use on public roads.

Sleek by day – Safe by night

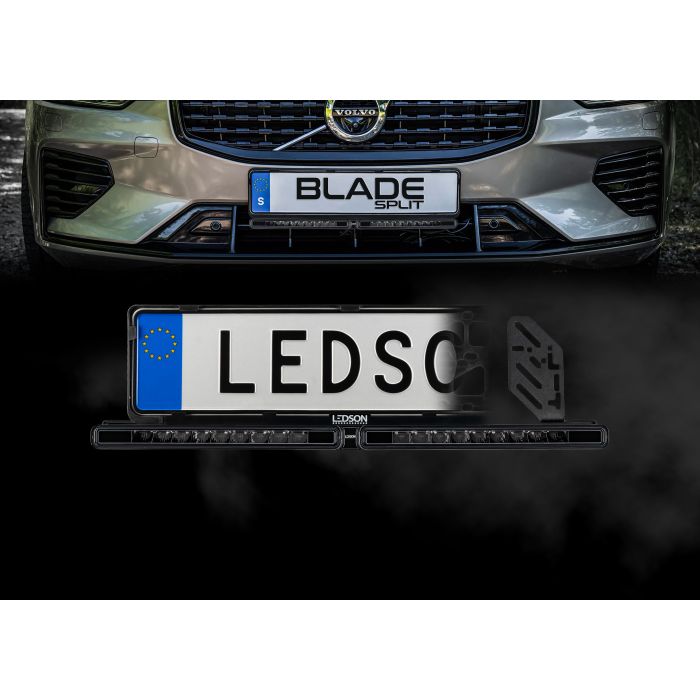

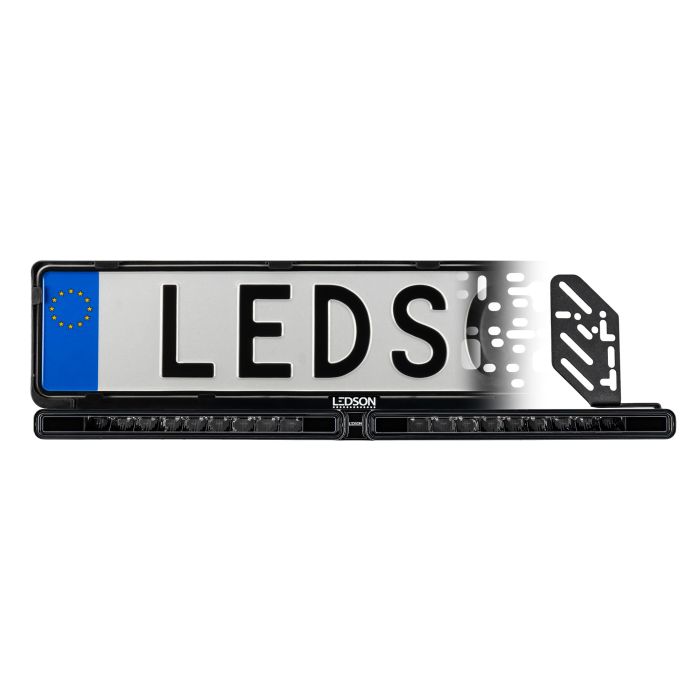

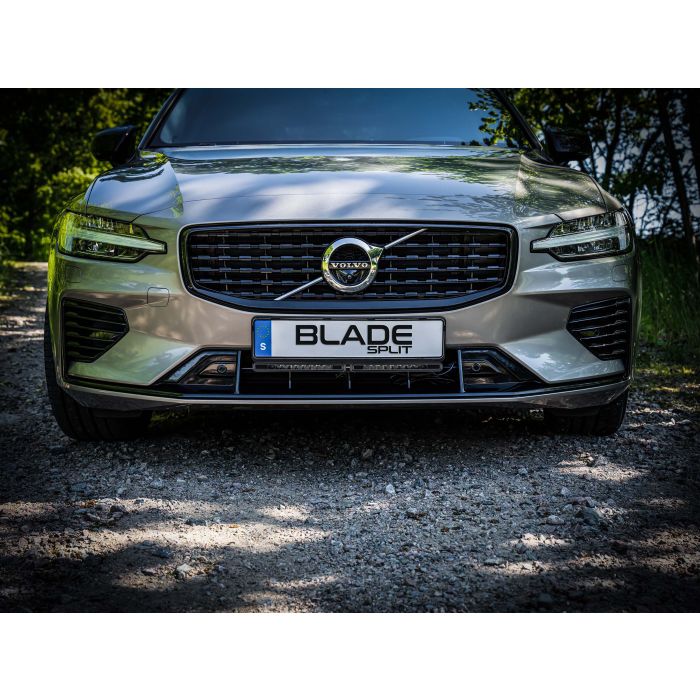

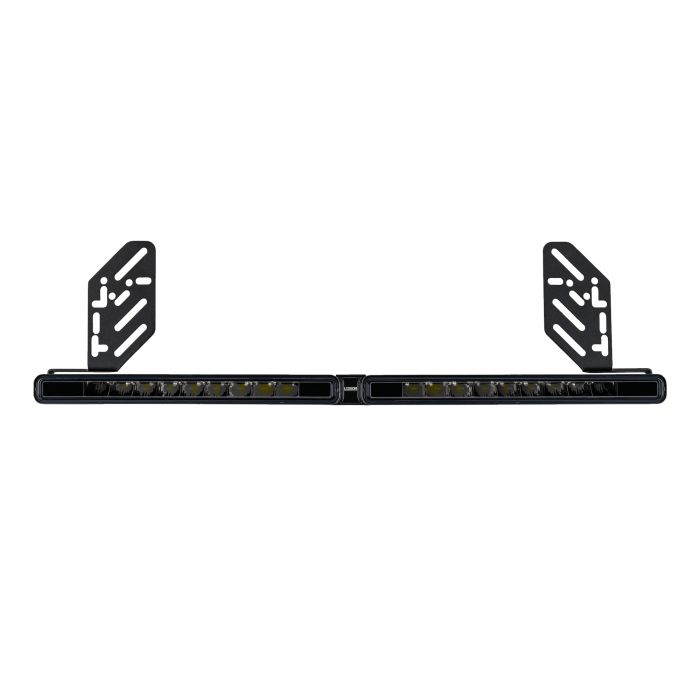

Thanks to the specially designed brackets, it is easily mounted behind the license plate – without sticking out. When turned off, it blends seamlessly with the vehicle's lines, making it perfect for those who want a powerful yet discreet lighting solution.

Hassle-free installation – everything included

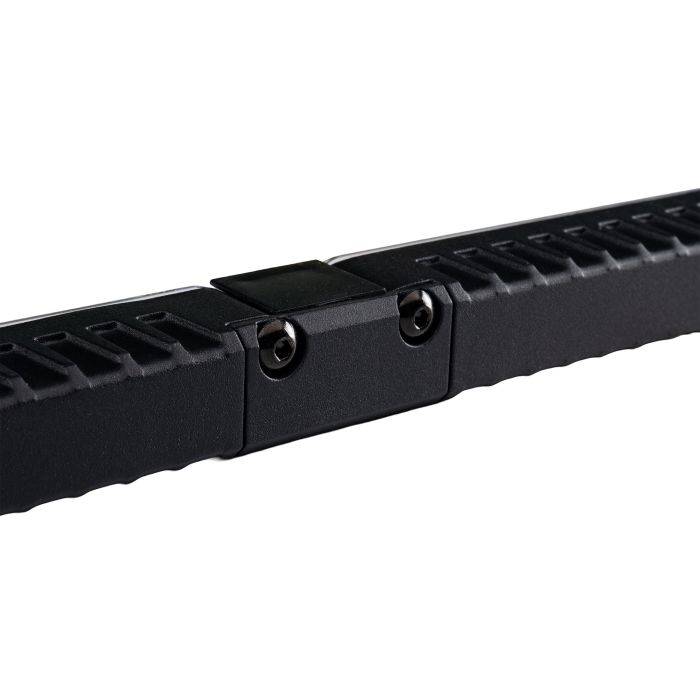

For easy and smooth installation, a complete wiring kit is included, suitable for both LED, Xenon and halogen vehicles. The thin cable and connector can be discreetly routed through a small hole into the engine bay. With a 170 cm long cable, you have plenty of flexibility during installation. You can very easily adjust the beam pattern using two screws on the outer edges of the bar without removing it. It doesn’t get easier than this!

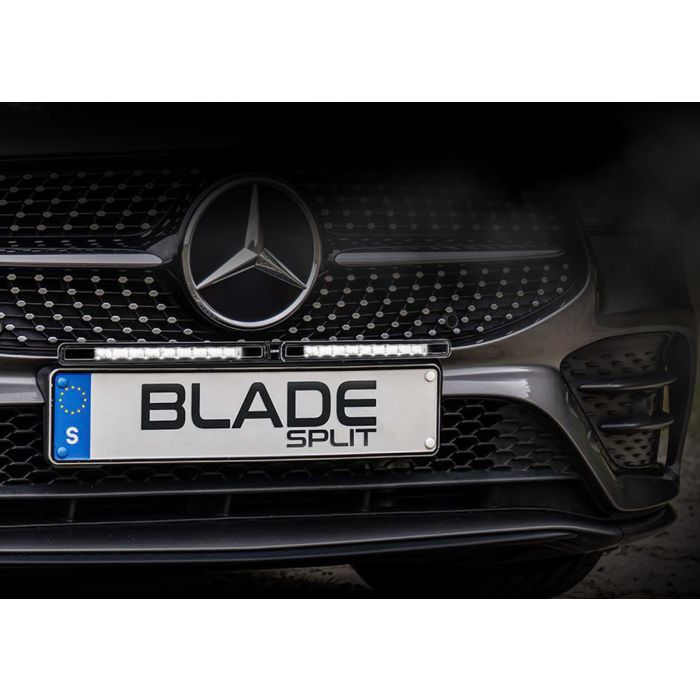

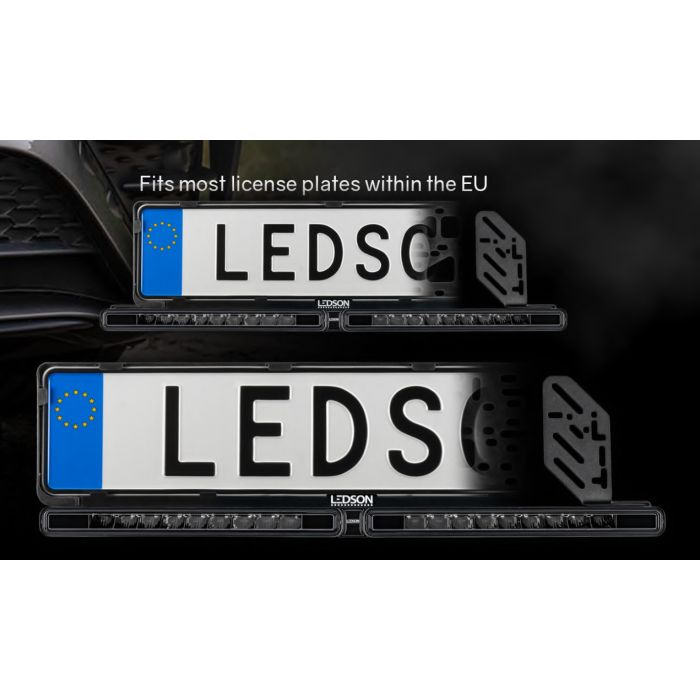

The Blade bar can be attached both above and below the license plate and with recessed or forward mounting.

Halogen or XBB to LED/Xenon high beam
For vehicles with halogen high beams, simply connect the yellow cable to the high beam signal. For vehicles with Xenon or LED, the XBB system (item number artnr 7800221, sold separately) is used for easy connection. Blade works with both 12V (cars) and 24V (trucks) systems, though only 12V when using XBB. If you are unsure whether you need the XBB Dongle kit, i.e. whether you have halogen or LED/Xenon on your high beam, contact us at info@diodhuset.se or +46 (0)42 453 33 30.

Features and technical data:

  • Driving Beam light pattern (wide and oblong)
  • Curved design to neatly match the front of the car
  • E-marked R149 (ref. no 40), R10 (EMC rated)
  • Range: 435 m (1 lux)
  • Lumen: 8 800 lumen (theoretical), 6 500 lumen (actual)
  • Color temperature 5000K (Neutral White)
  • 88 W (22 x 4 W LED)
  • Voltage: 9-36V
  • IP69K (water/dustproof)
  • Aluminum housing and polycarbonate lens
  • Side reflective optics
  • Pressure equalization membrane
  • Electronic heat management

Supplied:

  • Ledson Blade LED Bar
  • Control unit with wiring harness
  • Mounting details
  • Locking strip for number plate holder
  • Hex socket screws with washers
  • Self-drilling screws
  • Instructions

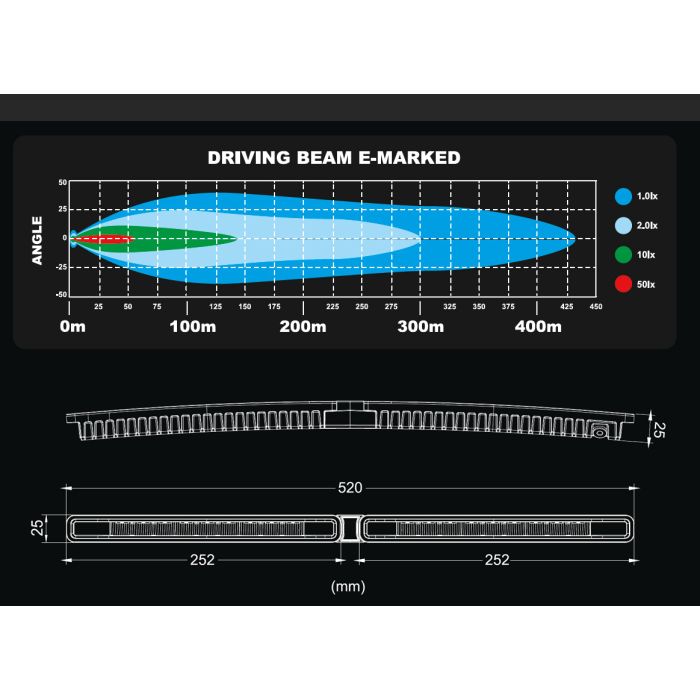

Dimensions & weight:

  • Width: 520 mm
  • Height: 25 mm
  • Depth: 25 mm
  • Weight: 850 g (including wiring and complete mounting kit)
