LED position light for Scania Top High beam |2016-2022|

LED position light for Scania Top High beam |2016-2022|

31 in stock
Color
€105,00
€105,00
Tax included.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

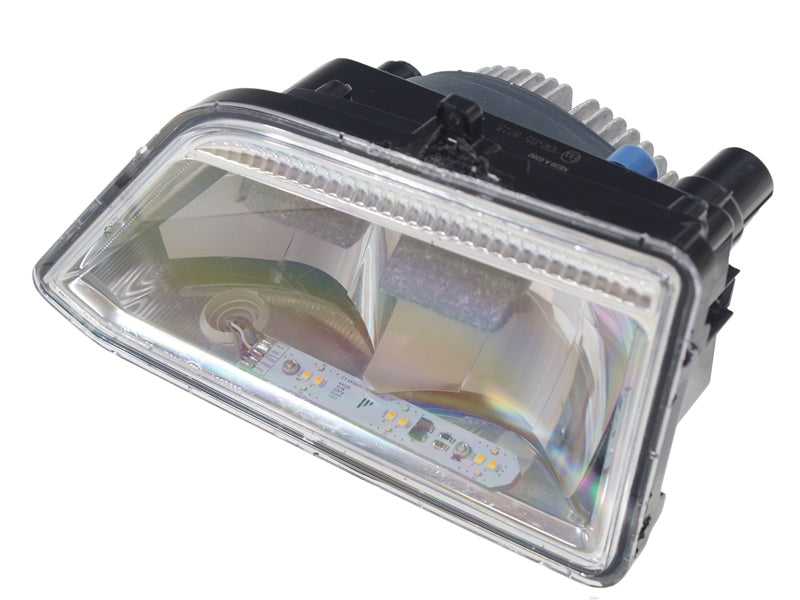

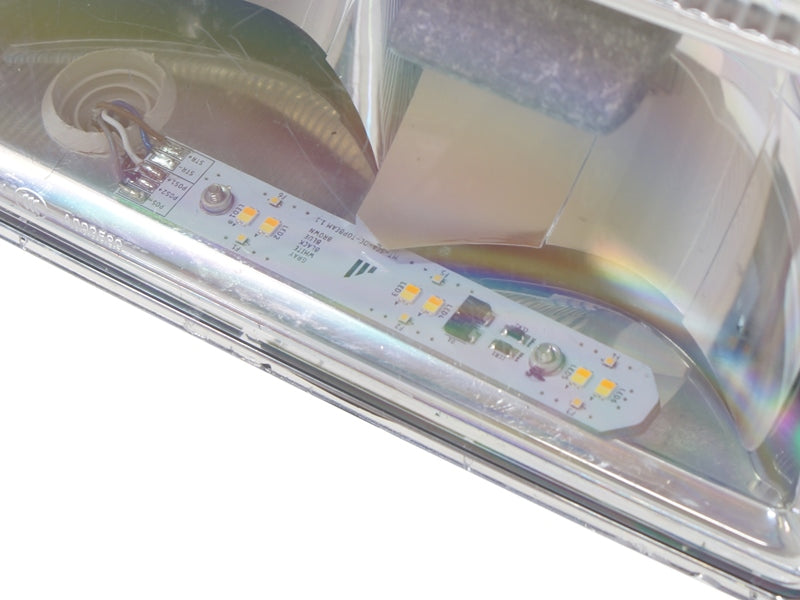

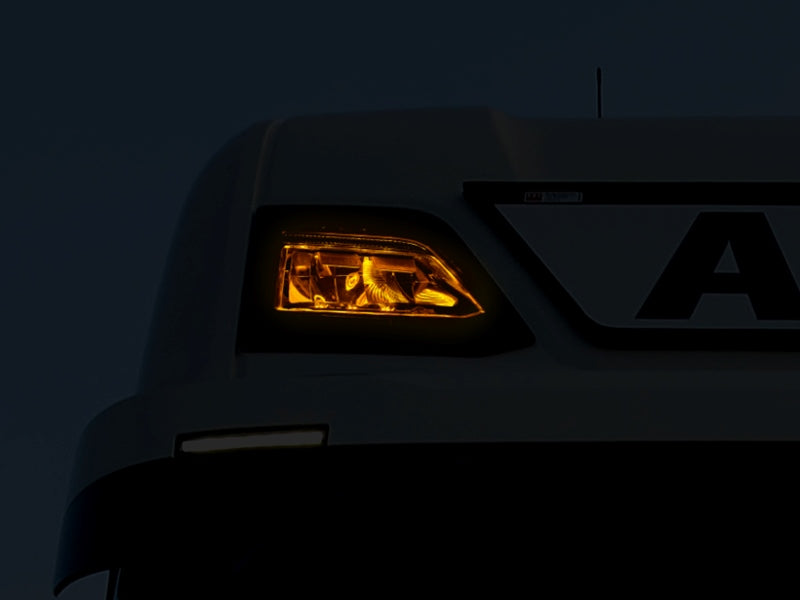

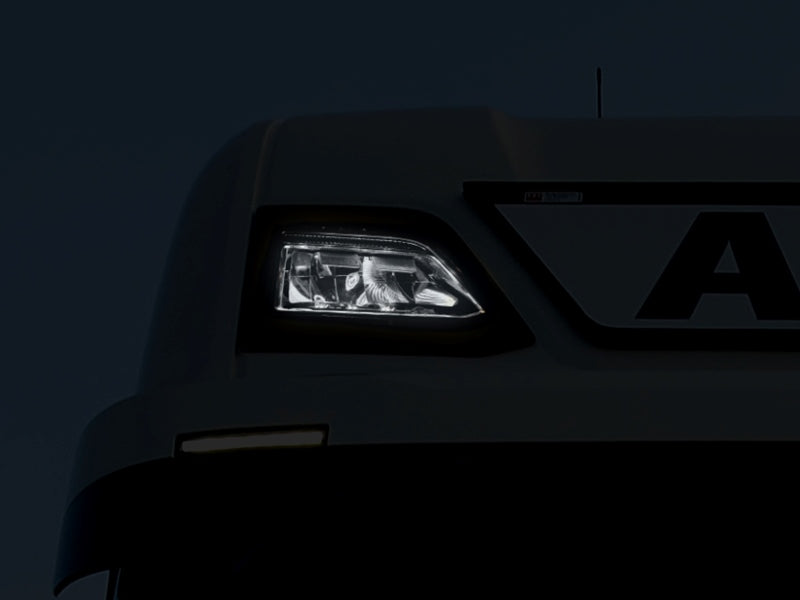

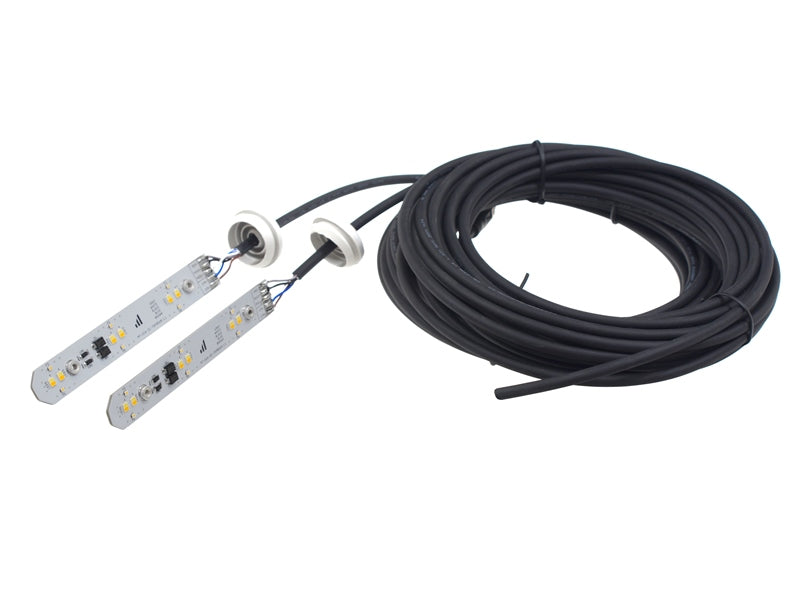

LED emitters specifically developed for the Scania high beams in the roof. The 6 powerful LEDs on each emitter, light up the reflector, and it work as extra / supplemental position lights.

The emitter is available with Dual color and Dual color + Flash. The flash model has 6 high-power LEDs that give a very bright flash.

Dual color

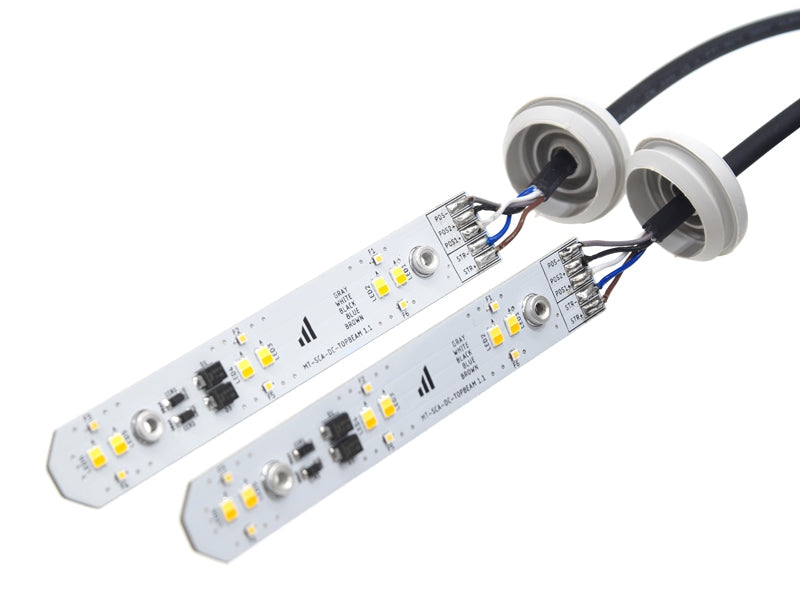

There is 3 meter cable on each board. There are one minus and two plus-wires. You should never have both colors turned on, so you need to use a toggle switch to change between the colors.

Dual color + flash

Standard strobecolor is yellow, but it can be customized to eg. blue or white for special purpose vehicles.

There is 6 meter cable on the emitter with M8 connectors, that can be connected to the included controller. The controller manages the two colors, and automatically turns them off when you enable the strobe light. The controller itself has 3 meter wire. The cable has 4 wires:

  • Minus - Green cable
  • Plus for the white position light - White cable
  • Plus for the yellow position light - Yellow cable
  • Plus for strobe light - Brown cable

Mounting

Mounting the emitters into the lamps is relatively easy, especially compared to the other lamps.

The lamps have to be removed from the frames they are mounted in.

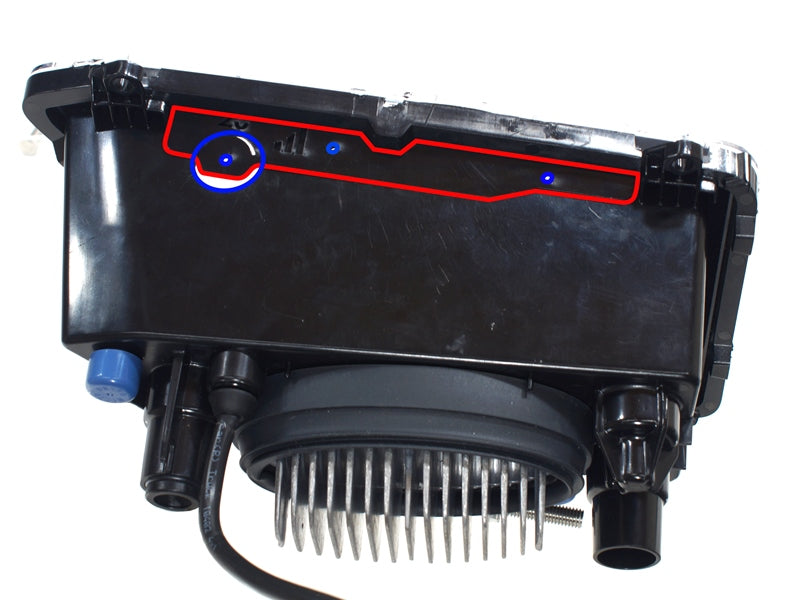

Use the included drilling template on the bottom of the lamp, and drill a 20mm hole and two 3.5mm holes. Make sure to remove any debris from the drilling.

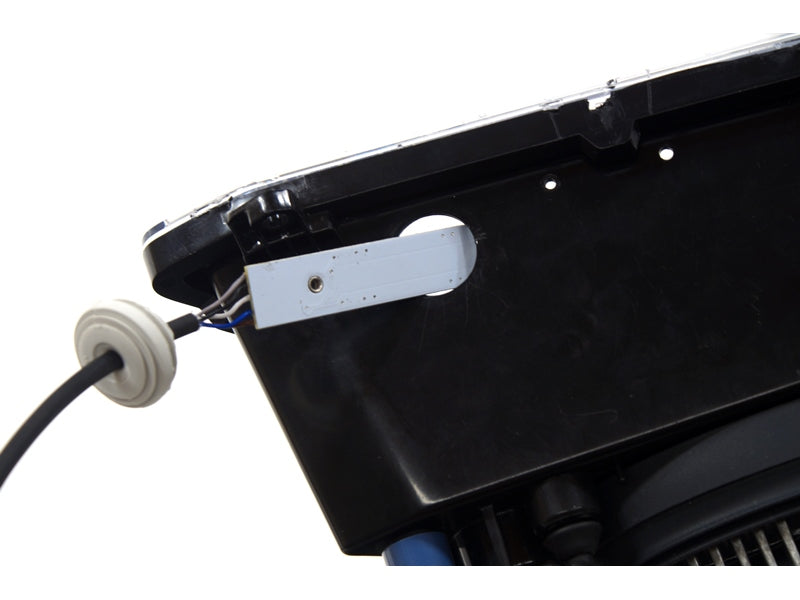

The emitter is put into the lamp through the large hole. On the emitter, there are two solder-nuts, that are used for fastening the emutter, through the two small holes, with the included M3 bolts. Make sure to add glue to the head of the bolts, to avoid water ingress.

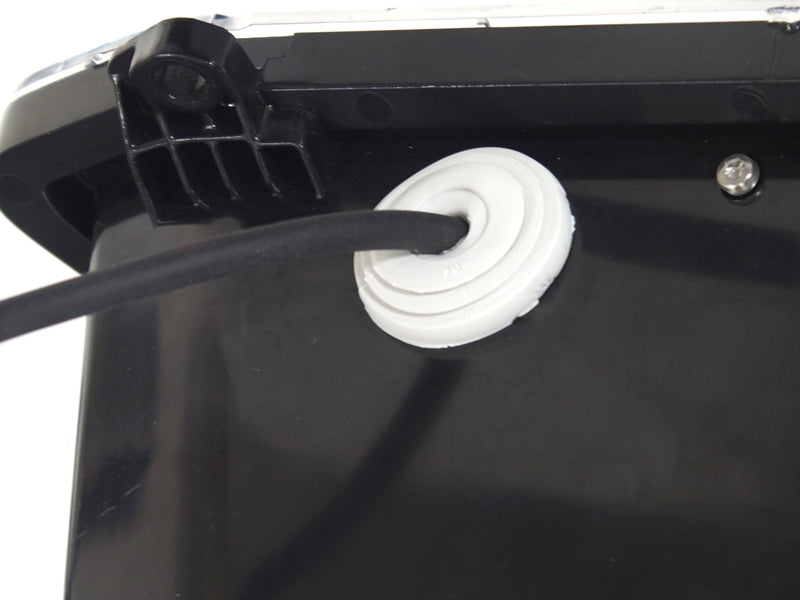

Push up the rubber gasket, so that it is secured in the hole. Adding silicone grease in the gasket can be beneficial, to avoid water ingress.
